| Part Number | A Angle in Inches | B in Inches | C in Inches | A Angle in mm | B in mm | C in mm | |
|---|---|---|---|---|---|---|---|
 | 2017 | 82 1/2° | 3 9/16" | 1 11/16" | 82.5° | 90 | - | 2018 | 75° | 3 9/16" | 1 11/16" | 75° | 90 | - | 2019 | 67 1/2° | 3 1/2" | 1 3/4" | 67.5° | - | - | 2020 | 60° | 3 3/8" | 1 7/8" | 60° | - | - | 2021 | 52 1/2° | 3 1/4" | 2 1/16" | 52.5° | - | - | 2022 | 45° | 3" | 2 5/16" | 45° | - | - | 2023 | 37 1/2° | 2 11/16" | 2 5/8" | 37.5° | - | - | 2024 | 30° | 3 1/4" | 2 1/16" | 30° | - | - | 2025 | 22 1/2° | 3 5/16" | 2 1/16" | 22.5° | - | - | 2026 | 15° | 3 5/16" | 2 1/16" | 15° | - | - | 2027 | 7 1/2° | 3 5/16" | 2 1/16" | 7.5° | - | - |
2 Hole Obtuse Bracket
ACUTE BRACKET 2 HOLE
| Part Number | A Angle in Inches | B in Inches | C in Inches | A Angle in mm | B in mm | C in mm | |
|---|---|---|---|---|---|---|---|

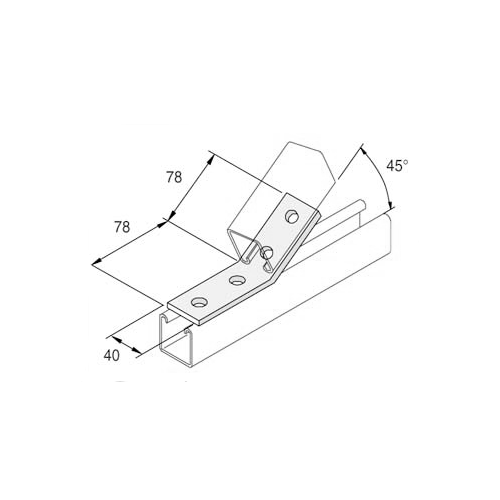

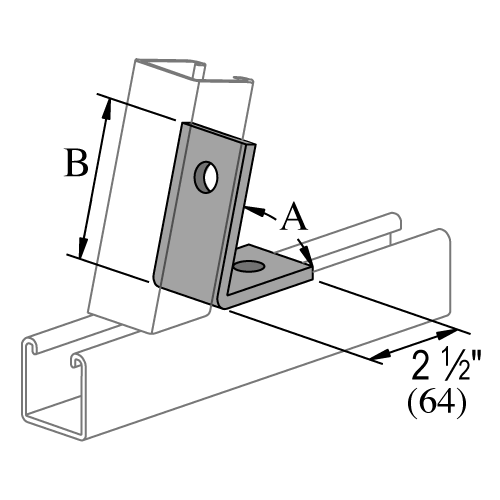

 | 2028 | 37 1/2° | 3" | - | - | - | - | 2029 | 45° | 3 1/8" | - | - | - | - | 2030 | 52 1/2° | 3 1/16" | - | - | - | - | 2031 | 60° | 3 1/8" | - | - | - | - | 2032 | 67 1/2° | 3 1/8" | - | - | - | - | 2033 | 75° | 3 1/16" | - | - | - | - | 2034 | 82 1/2° | 3 1/16" | - | - | - | - |

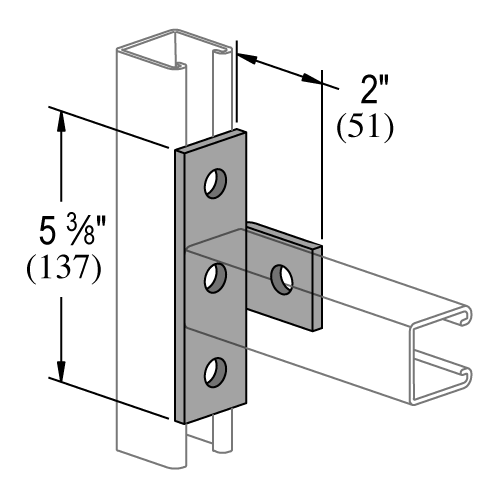

2010
2036
