| Part Number | Size (mm) | Length | |
|---|---|---|---|
 | 8001 | M6 X 6MM | - | 8002 | M8 X 6MM | - | 8003 | M10 X 8MM | - | 8004 | M12 X 8MM | - | 8005 | M12 X 9MM | - | 8006 | M16 X 12MM | - |

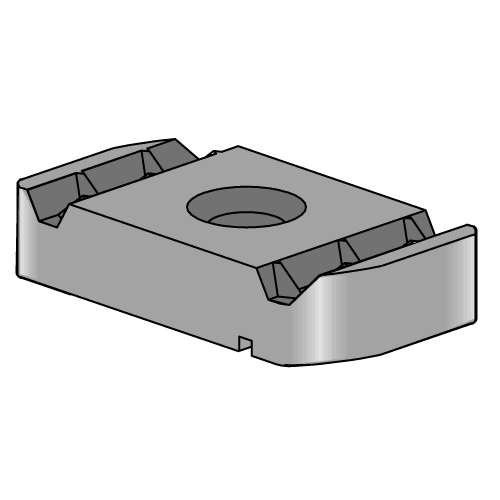

CHANNEL NUTS WITHOUT SPRING (MM SIZE)
CHANNEL NUTS WITHOUT SPRING (INCH SIZE)
| Part Number | Size (mm) | Length | |
|---|---|---|---|
 | 8007 | 1/4″ X 1/4″ | - | 8008 | 5/16″ X 5/16″ | - | 8009 | 5/16″ X 3/8″ | - | 8010 | 3/8″ X 3/8″ | - | 8011 | 1/2″ X 1/2″ | - | 8012 | 1/2″ X 3/8″ | - | 8013 | 5/8″ X 1/2″ | - | 8014 | 5/8″ X 3/8″ | - | 8015 | 3/4″ X 1/2″ | - | 8016 | 3/4″ X 3/8″ | - | 8017 | 7/8″ X 1/2″ | - |

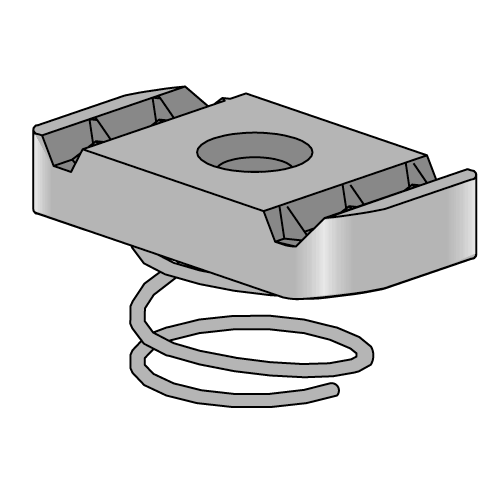

CHANNEL NUT SHORT/CONICAL SPRING (MM SIZE)
| Part Number | Size (mm) | Length | |
|---|---|---|---|
 | 8018 | M6 X 6MM | - | 8019 | M8 X 6MM | - | 8020 | M10 X 8MM | - | 8021 | M12 X 8MM | - | 8022 | M12 X 9MM | - | 8023 | M16 X 12MM | - |
CHANNEL NUT SHORT/CONICAL SPRING (INCH SIZE)
| Part Number | Size (mm) | Length | |
|---|---|---|---|
 | 8024 | 1/4″ X 1/4″ | - | 8025 | 5/16″ X 5/16″ | - | 8026 | 5/16″ X 3/8″ | - | 8027 | 3/8″ X 3/8″ | - | 8028 | 1/2″ X 1/2″ | - | 8029 | 1/2″ X 3/8″ | - | 8030 | 5/8″ X 1/2″ | - | 8031 | 5/8″ X 3/8″ | - | 8032 | 3/4″ X 1/2″ | - | 8033 | 3/4″ X 3/8″ | - | 8034 | 7/8″ X 1/2″ | - |
CHANNEL NUT LONG SPRING (MM SIZE)
| Part Number | Size (mm) | Length | |
|---|---|---|---|
 | 8035 | M6 X 6MM | - | 8036 | M8 X 6MM | - | 8037 | M10 X 8MM | - | 8038 | M12 X 8MM | - | 8039 | M12 X 9MM | - | 8040 | M16 X 12MM | - |

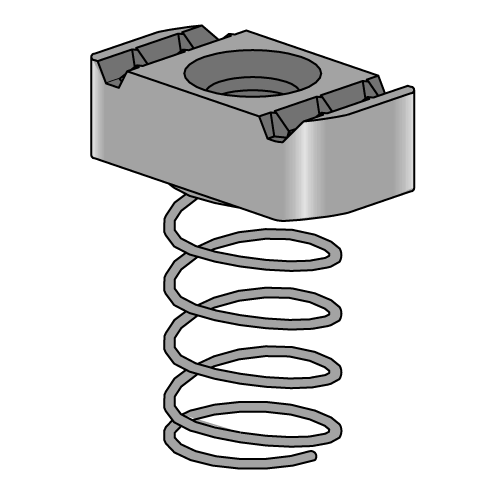

CHANNEL NUT LONG SPRING (INCH SIZE)
| Part Number | Size (mm) | Length | |
|---|---|---|---|
 | 8041 | 1/4″ X 1/4″ | - | 8042 | 5/16″ X 5/16″ | - | 8043 | 5/16″ X 3/8″ | - | 8044 | 3/8″ X 3/8″ | - | 8045 | 1/2″ X 1/2″ | - | 8046 | 1/2″ X 3/8″ | - | 8047 | 5/8″ X 1/2″ | - | 8048 | 5/8″ X 3/8″ | - | 8049 | 3/4″ X 1/2″ | - | 8050 | 3/4″ X 3/8″ | - | 8051 | 7/8″ X 1/2″ | - |

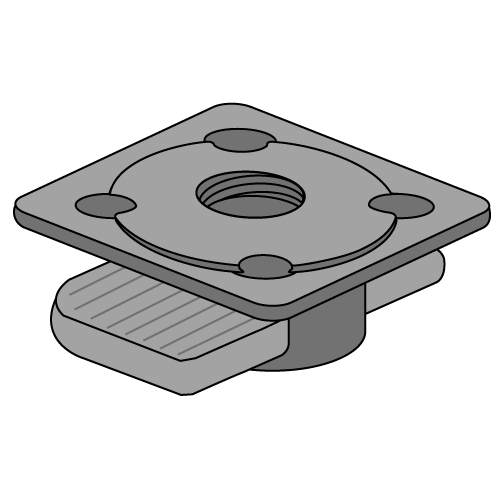

CHANNEL NUT WITH WASHER
| Part Number | Size (mm) | Length | |
|---|---|---|---|
 | 8052 | M6 X 6MM | - | 8053 | M8 X 6MM | - | 8054 | M10 X 6MM | - | 8055 | M12 X 6MM | - |

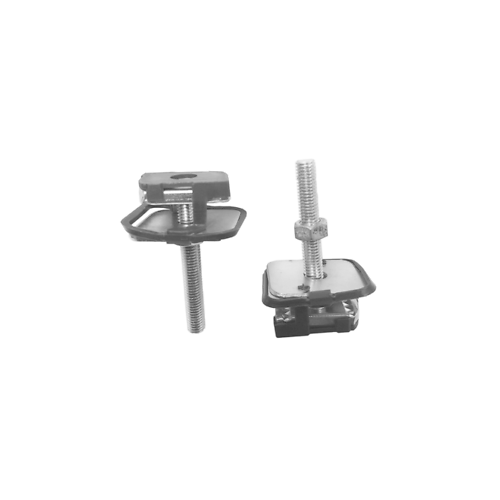

CHANNEL NUT WITH WASHER AND STUD
| Part Number | Size (mm) | Length | |
|---|---|---|---|
 | 8056 | M6 X 6MM | L | 8057 | M8 X 6MM | L | 8058 | M10 X 6MM | L |

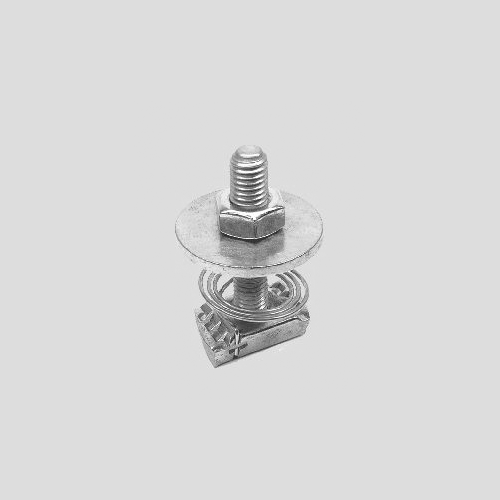

HAMMER HEAD BOLT WITH TOP SPRING
| Part Number | Size (mm) | Length | |
|---|---|---|---|
 | 8059 | M6 X 6MM | L | 8060 | M8 X 6MM | L | 8061 | M10 X 8MM | L | 8062 | M12 X 8MM | L | 8063 | M12 X 9MM | L |
HAMMER HEAD BOLT WITH TOP SPRING AND LIPPED WASHER
| Part Number | Size (mm) | Length | |
|---|---|---|---|
| 8064 | M6 X 6MM | L | 8065 | M8 X 6MM | L | 8066 | M10 X 8MM | L | 8067 | M12 X 8MM | L | 8068 | M12 X 9MM | L |
HAMMER HEAD BOLTS
| Part Number | Size (mm) | Length | |
|---|---|---|---|
 | 8064 | M6 X 6MM | L | 8065 | M8 X 6MM | L | 8066 | M10 X 8MM | L | 8067 | M12 X 8MM | L | 8068 | M12 X 9MM | L |

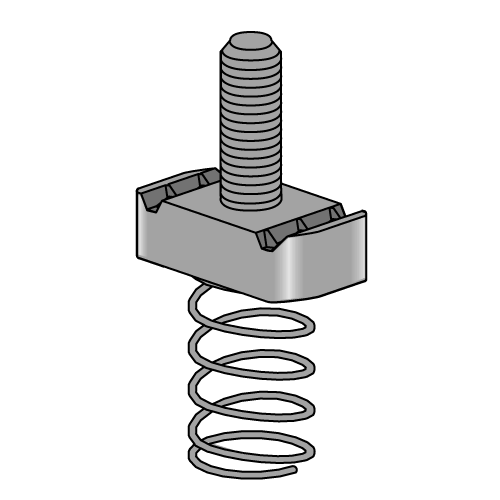

STUD NUT WITH SPRING
| Part Number | Size (mm) | Length | |
|---|---|---|---|
 | 8069 | M6 X 6MM | L | 8070 | M8 X 6MM | L | 8071 | M10 X 8MM | L | 8072 | M12 X 8MM | L | 8073 | M12 X 9MM | L |
STRUT NUT BUTTERFLY
| Part Number | Size (mm) | Length | |
|---|---|---|---|
| 8074 | M6 X 6MM | - | 8075 | M8 X 6MM | - | 8076 | M10 X 8MM | - | 8077 | M12 X 8MM | - |
